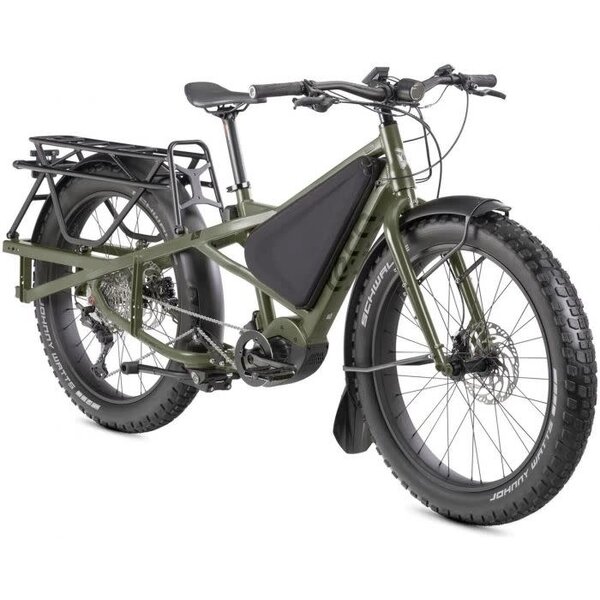

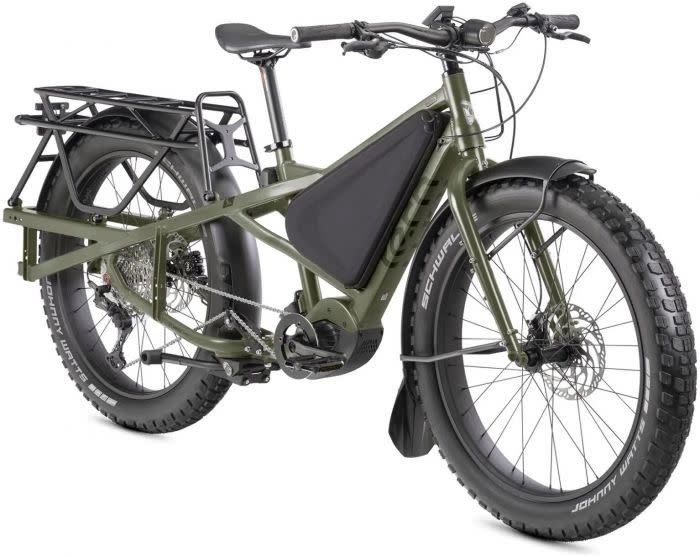

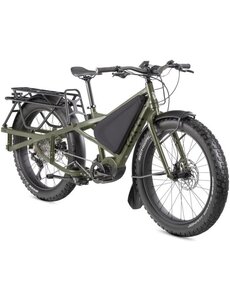

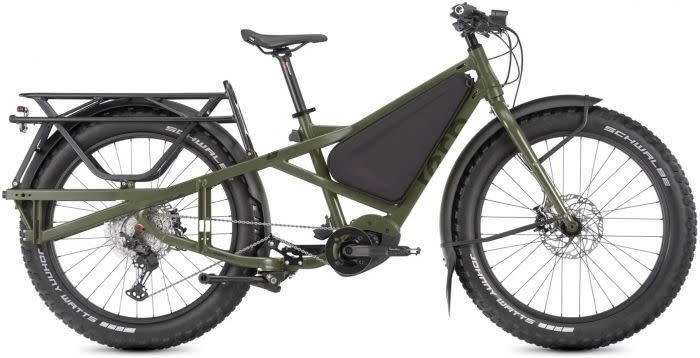

Orox Gen 1 Orox S12 EU 27.5 in Perf w/o, L size, 1 x BES2 800wh SPine, Grey, LR

£5,900.00 Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)

What makes it an S12? Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting Custom 27.5" Schwalbe Johnny Watts all-terrain tires or 27.5" stud-compatible Vee Snowball tires take on even the toughest conditions Read more

Specifications

Brand:

Tern

Availability:

Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)

Delivery time:

Check out now or What's app us to configure and order, as this item is NOT IN STOCK. (PRE ORDERS ONLY)

Information

Features

Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
Dual-battery system draws from up to two batteries for ultra-long range
Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
Powerful and responsive Magura 4-piston hydraulic brakes
EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

Specifications

Frame and Forks

Frame: Tern Orox, 6061-AL, patented design, EFBE tested and approved
Fork: Atlas X, butted chromoly steel, EFBE tested and approved

Drivetrain

Rear Derailleur: Shimano Deore XT Shadow+
Crankset: Tern Orox custom
Cassette: Shimano 10-51 Tooth, 12 Speed
Bottom Bracket: Motor integrated
Chain: KMC 12 Speed, for eBike, EPT corrosion resistant coating

Braking/Shifting

Brakes: Magura MT5, 4-piston hydraulic disc, 203 mm rotor
Gear Shifters: Shimano Deore, 1 x 12 Speed

Wheels

Front Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
Rear Hub: Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
Rims: Tern Atlas X, custom doublewall construction
Tyres: Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"

Finishing Kit

Headset: FSA, 1.5", angular contact bearings
Handlebar: Level Nine, AL-7050, 800 mm, riser, eMTB approved
Stem: Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
Grips: Ergon
Saddle: Ergon SM, E-Mountain Sport, CrMo Rail
Seat Post: Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
Pedals: MTB, non-slip

Extras

Bell: Pitch Plus, Brass
Tool: Thru-Axle Lever, 4/5 mm, Torx 2.5 mm
Chainguard: Custom Bash Guard
Paint Protection: ToughShield Film on Top and Downtube, Self-Healing
Kickstand: Atlas Kickstand XL Cargo Ready
Front Light: Ignis Headlight, Ultra Wide 700 Lumens, Hi/Lo Beam
Rear Light: LED with G-Sensed Brake Light
Fenders: Aluminum, Heavy Duty Construction, Oversize Stays, 27.5"
Rack(S): Atlas X, 100 kg (220 lb) Capacity

Electric Power

Motor: Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
Battery: 800 Wh, Bosch Dual Battery pack ready
Display: Bosch Kiox 300 With LED remote, electronic bike lock
Controller: Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
