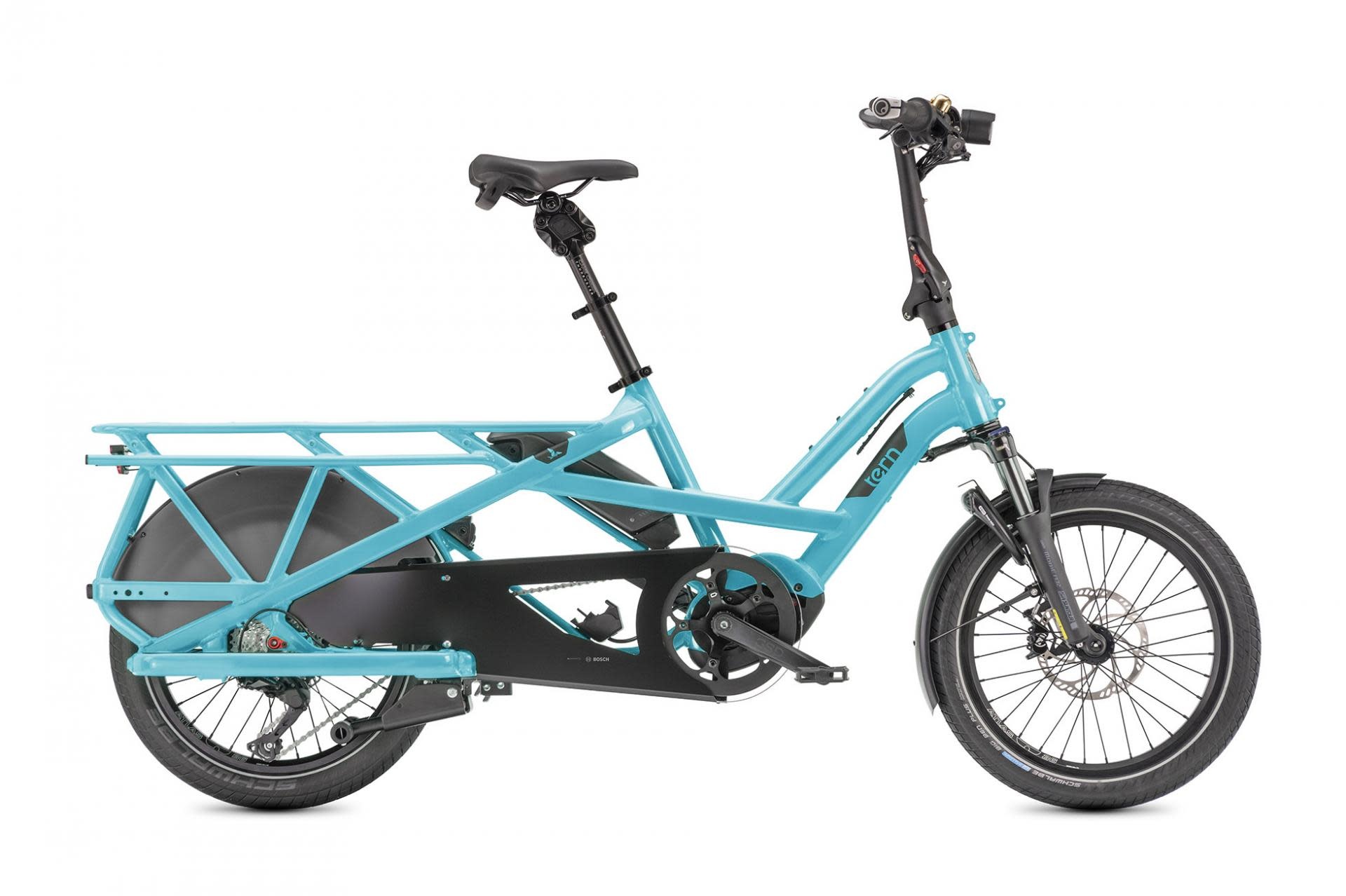

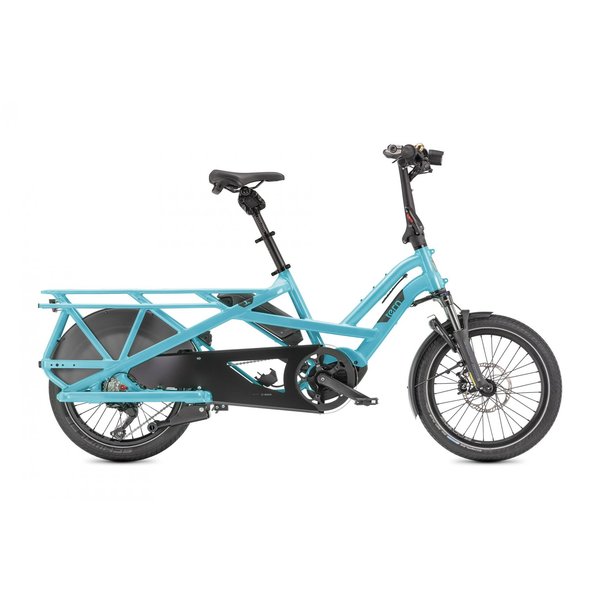

Tern GSD S10 LX 10Sp Performance CX (Gen 2)

£5,200.00 Out of stock
  • If you buy 1 or more of Tern GSD S10 LX 10Sp Performance CX (Gen 2) you get free shipping

Specifications

Brand:
Tern
SKU:
TERN2010
Availability:
Out of stock
Delivery time:
Check out now or What's app us to configure and order, as this item is NOT IN STOCK. (PRE ORDERS ONLY)

Information

  • 200 kg (440 lb) Maximum Gross Vehicle Weight
  • Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
  • Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
  • Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
  • Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)
  • Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
  • Heavy-duty frame-integrated rear rack and integrated lower decks
  • Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
  • Always-on RearStop™ Brake Light helps you safely signal stops
  • Integrated Abus® Wheel Lock, keyed-alike with the battery
  • Upgraded Atlas Wheels with custom CNC machined hubs for extra strength and durability
  • Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride
  • Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
  • Wide range of cargo- and passenger-carrying accessories
  • Fits two Thule® Yepp Maxi seats, no adapters needed
GENERAL INFO
SPEEDS: 1 x 10
WEIGHT: 33.58 kg (74 lb)
GEAR INCHES: 26" - 99" (2.08 - 7.91 m)

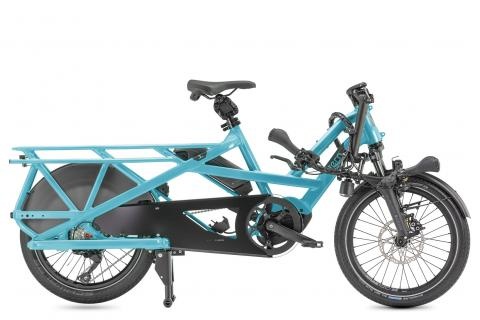

FOLDING SIZE: 176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
FOLDING TIME: 5 sec
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR: 49 - 59 cm (19.3 - 23.2 in)
DISTANCE: SADDLE TO PEDAL: 69 - 105 cm (27.2 - 41.3 in)
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 200 kg (440.9 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)

FRAME: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

COCKPIT
HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM: Tern Andros, adjustable, forged construction, patented technology
HEADSET: Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Ergon
SADDLE: Tern GSD by Velo, with rear handle
SEATPOST: Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc

BRAKES
FRONT BRAKE:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
REAR BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
BRAKE LEVERS: Magura MT5 e-stop, hydraulic, with brake sensor
BRAKE CABLE & HOUSING: Magura, hydraulic

WHEELS
FRONT WHEEL: Tern Atlas, heavy duty cargo wheel
REAR WHEEL: Tern Atlas, heavy duty cargo wheel
FRONT HUB: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
REAR HUB: Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
SPOKES AND NIPPLES: Stainless steel, 13G
RIMS: Tern Atlas, ultra wide 36 mm, dual reinforced joint

TYRES
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

TRANSMISSION
SHIFTER(S): Shimano Deore, 1 x 10 spd
REAR DERAILLEUR: Shimano Deore Shadow+
CRANKSET: Tern GSD custom, forged 6061-AL DH crankarm
CASSETTE/FREEWHEEL: Shimano 11-36T, 10 spd
BOTTOM BRACKET: Motor integrated
CHAIN: 10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS: Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)

BATTERY: Bosch Dual Battery system, 500 Wh/1000 Wh
DISPLAY: Bosch Purion
RANGE: 500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)

BELLS & WHISTLES
BELL: Pitch Plus, brass
CHAINGUARD: Tern Custom, full chain cover

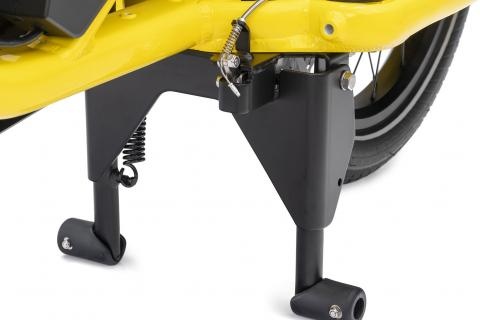

KICKSTAND: Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET: Combo Mount

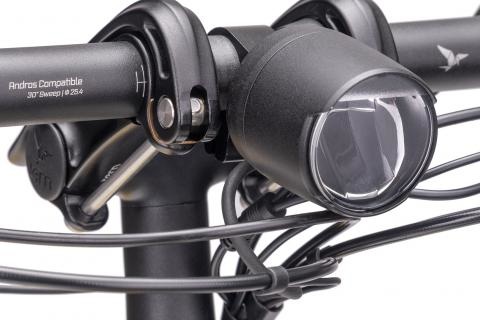

FRONT LIGHT: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT: RearStop Brake Light, Always on brake light
FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S): Frame integrated, heavy duty design

ACCESSORY:
ABUS, keyed-alike with Bosch battery
