GSD S00 (LR) PERFORMANCE CX (Gen2) School Bus Yellow
£6,100.00
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)

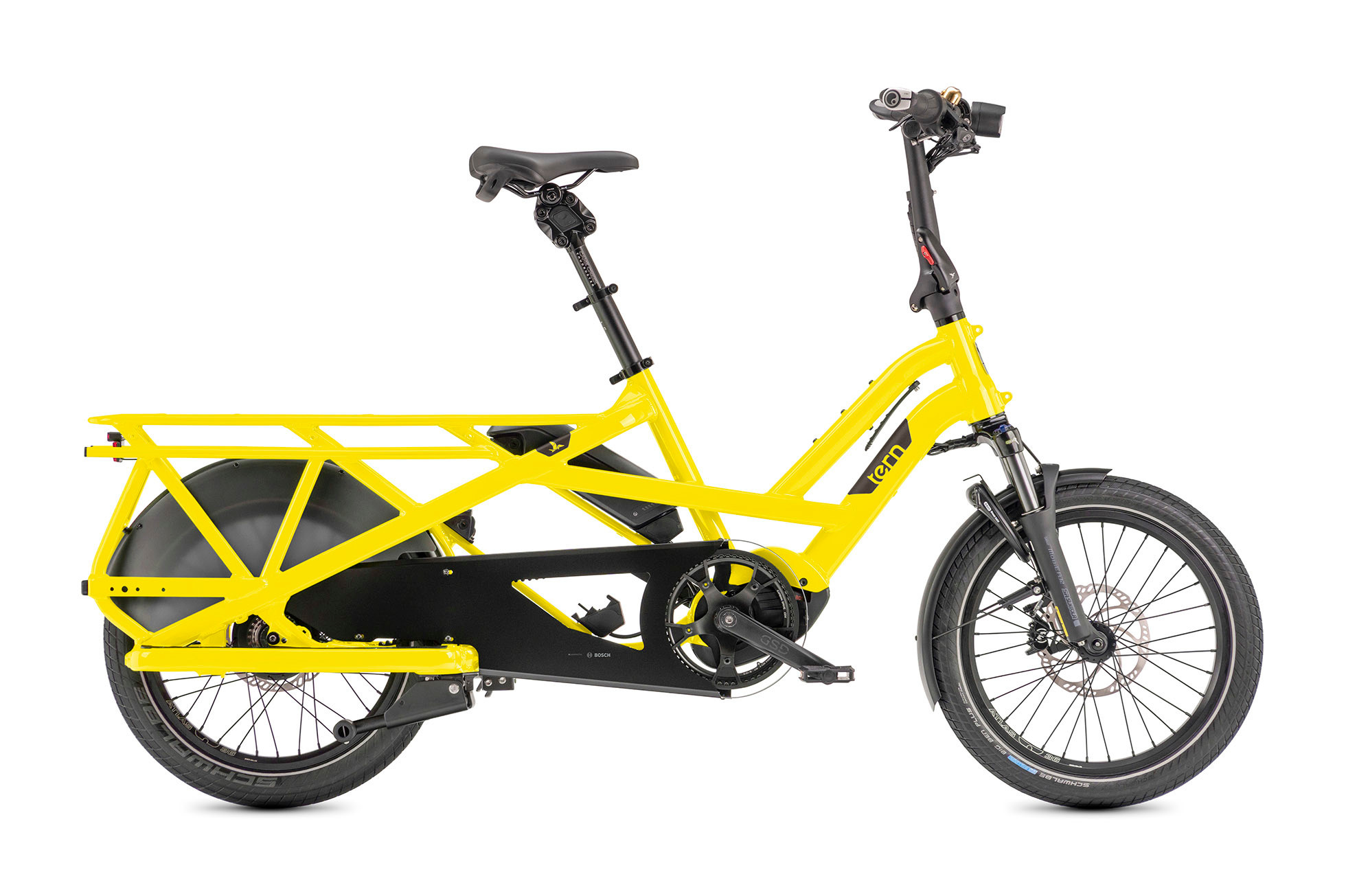

School Bus Yellow S00 Tern GSD
We can't wait to get this bike. The school bus yellow colour on this Tern GSD is amazing.
The belt drive and Enviolo hub make this a really easy bike to look after.
Pre Order now for April delivery Read more
Specifications
Brand:
Tern
Availability:
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)
Delivery time:
Check out now or What's app us to configure and order, as this item is NOT IN STOCK. (PRE ORDERS ONLY)
Information
School Bus Yellow S00 Tern GSD
We can't wait to get this bike. The school bus yellow colour on this Tern GSD is amazing.
The belt drive and Enviolo hub make this a really easy bike to look after.
Minimal cleaning and easy gear changes.
This version of the Tern GSD will be very popular.
Information
- 200 kg (440 lb) Maximum Gross Vehicle Weight
- Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
- Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
- Heavy-duty, continuously variable Enviolo SP hub
- Gates® CDX Belt Drive is silent, smooth, and virtually maintenance-free
- Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)
- Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
- Heavy-duty frame-integrated rear rack and integrated lower decks
- Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
- Always-on RearStop™ Brake Light helps you safely signal stops
- Integrated Abus® Wheel Lock, keyed-alike with the battery
- Upgraded Atlas Wheels with custom CNC machined hubs for extra strength and durability
- Wide range of cargo- and passenger-carrying accessories
- Fits two Thule® Yepp Maxi seats, no adapters needed
GENERAL INFO
SPEEDS:Continuously Variable 380%
WEIGHT:34.98 kg (77.1 lb)
GEAR INCHES: 26" - 99" (2.08 - 7.91 m)
FOLDING SIZE: 176 × 40.5 × 83 cm (69.3 × 15.9 × 32.7 in)
FOLDING TIME: 5 sec
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR: 49 - 59 cm (19.3 - 23.2 in)
DISTANCE: SADDLE TO PEDAL: 69 - 105 cm (27.2 - 41.3 in)
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:200 kg (440.9 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)
FRAME:
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
COCKPIT
HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM: Tern Andros, adjustable, forged construction, patented technology
HEADSET: Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Ergon
SADDLE: Tern GSD by Velo, with rear handle
SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc
BRAKES
FRONT BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
REAR BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
BRAKE LEVERS: Magura MT5 e-stop, hydraulic, with brake sensor
WHEELS
FRONT HUB: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
REAR HUB: Enviolo SP, 380% continuously variable range, Boost
SPOKES AND NIPPLES: Stainless steel, 13G
RIMS: Tern Atlas, ultra wide 36 mm, dual reinforced joint
TYRES:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
TRANSMISSION
SHIFTER(S): Enviolo, Twist
CRANKSET: Tern GSD custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL: Gates CDX, precision CNC machined cog
BOTTOM BRACKET: Motor integrated
CHAIN: Gates Carbon Drive CDX belt
PEDALS: Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: Bosch Dual Battery system, 500 Wh or 1000 Wh
DISPLAY: Bosch Purion, 4 mode selectable, walk assist
RANGE: 500 Wh: 50-101 km (31-63 mi); 1000 Wh: 102-206 km (63-128 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
BELLS & WHISTLES
BELL: Pitch Plus, brass
CHAINGUARD: Tern Custom, full chain cover
KICKSTAND: Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET: Combo Mount
FRONT LIGHT: Tern Valo Direct, 190 lumens
REAR LIGHT: RearStop Brake Light, Always on brake light
FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S): Frame integrated, heavy duty design
ACCESSORY: ABUS, keyed-alike with Bosch battery
