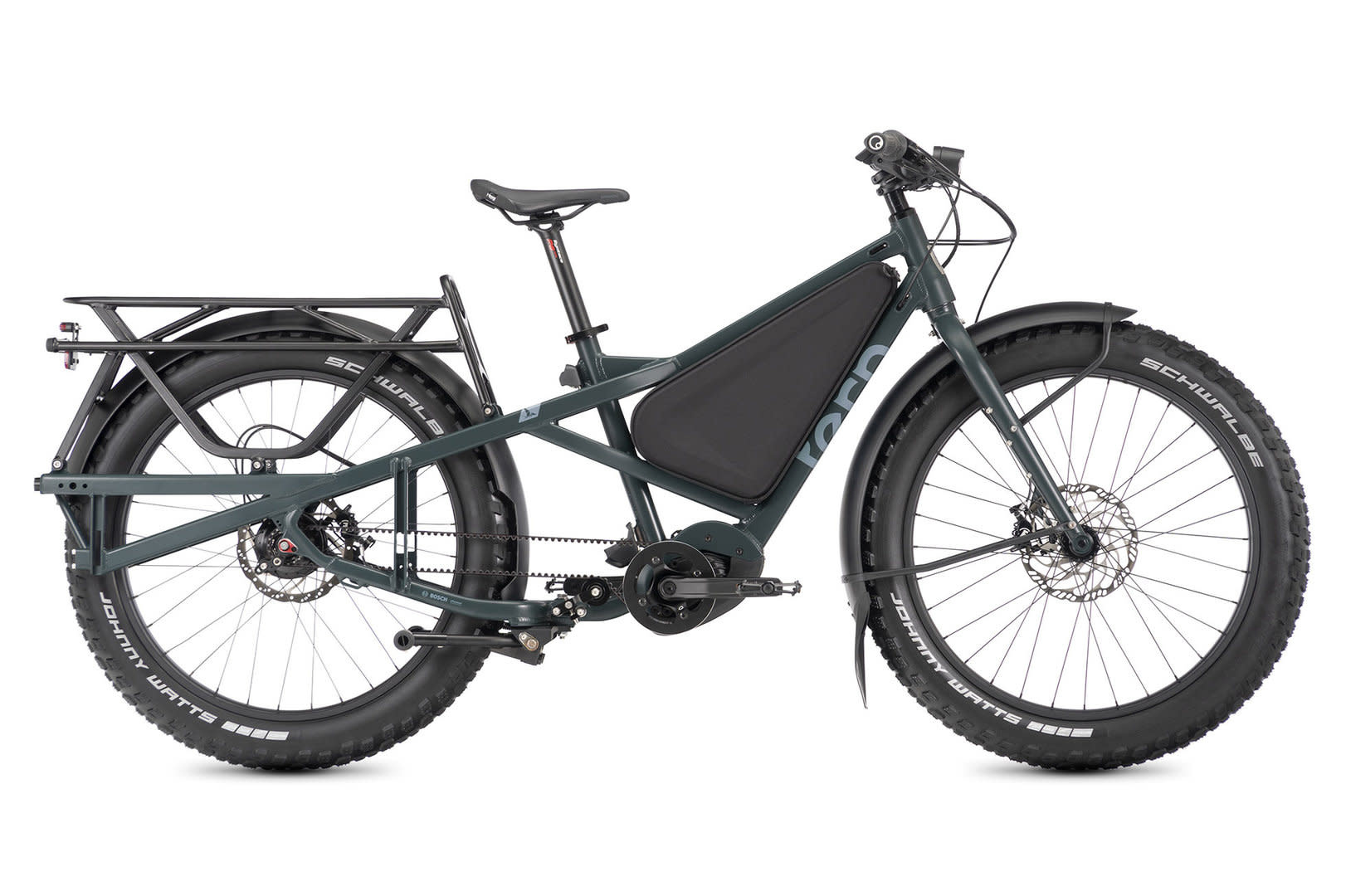

Orox Gen 1 Orox R14, Gates Belt, EU 27.5 in Perf w/o, L size, 1 x BES2 800wh Granite colour, LR
£8,100.00
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)
What makes it an R14?
Highly-durable and virtually maintenance-free Rohloff Speedhub
Silent, smooth, and rust & grease-free Gates Belt Drive
Custom 27.5" Schwalbe Johnny Watts all-terrain tires with optimized tread take on even the toughest conditions Read more
Specifications
Brand:
Tern
Availability:
Pre-order Available! Check out now or WhatsApp us for custom configuration (THIS ITEM IS NOT IN STOCK, THIS PURCHASE IS FOR PREORDERS ONLY! ETA FOR THIS ITEM CAN BE CONFIMRED WITH THE STORE!)
Delivery time:
Check out now or What's app us to configure and order, as this item is NOT IN STOCK. (PRE ORDERS ONLY)
Information
GENERAL INFO
SPEEDS: 1 x 14
WEIGHT: M: 37.7 kg (83.1 lb)
GEAR INCHES: 18" - 96" (1.45 - 7.64 m)
FRAME SIZES: M, L
DISTANCE: SEATPOST TO HANDLEBAR:
M: 61 - 66 cm (24 - 26 in) ;
L: 67 - 73 cm (26.4 - 28.7 in)
DISTANCE: SADDLE TO PEDAL:
M: 71 - 99 cm (28 - 39 in) ;
L: 76.5 - 104.5 cm (30.1 - 41.1 in)
SUGGESTED RIDER HEIGHT:
M: 155 - 185 cm (61 - 72.8 in) ;
L: 165 - 195 cm (65 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
On-road: 210 kg (463 lb) ;
Off-road: 180 kg (396.8 lb)
MAX RIDER WEIGHT:
130 kg (286.6 lb)
FRAME
FRAME:
Tern Orox, 6061-AL, patented design, EFBE tested and approved
FORK:
Atlas X, butted chromoly steel, EFBE tested and approved
COCKPIT
STEM:
Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
HEADSET:
FSA, 1.5", angular contact bearings
HANDLEBAR:
Level Nine, AL-7050, 800 mm, riser, eMTB approved
GRIPS/BAR TAPE:
Ergon
SADDLE:
Ergon SM, E-Mountain Sport, CrMo Rail
SEATPOST:
Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
SEATPOST CLAMP:
Tern Collar
BRAKES
FRONT BRAKE:
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
REAR BRAKE:
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
BRAKE LEVERS:
Magura MT5, hydraulic
BRAKE CABLE & HOUSING:
Magura, hydraulic
WHEELS
FRONT WHEEL:
Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
REAR WHEEL:
Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
FRONT HUB:
Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
REAR HUB:
Rohloff, 526% range, Boost
SPOKES & NIPPLES:
Stainless steel
RIMS:
Tern Atlas X, custom doublewall construction
TYRES:
Schwalbe Johnny Watts 27.5" x 4"
TRANSMISSION
SHIFTER(S):
Rohloff, Twist
CRANKSET:
Tern Orox custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL:
Gates CDX, precision CNC machined cog
BOTTOM BRACKET:
Motor integrated
CHAIN:
Gates Carbon Drive CDX belt
PEDALS:
MTB, non-slip
SHIFTER CABLE & HOUSING:
Rohloff
E-SYSTEM
MOTOR:
Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
800 Wh, Bosch Dual Battery pack ready
DISPLAY:
Bosch Kiox 300 w/ LED remote, electronic bike lock
RANGE:
800 Wh: 93 - 161 km (58 -100 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)
CONNECT MODULE:
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
BELLS & WHISTLES
BELL:
Pitch Plus, brass
TOOL:
Thru-axle lever, 4/5 mm, Torx 2.5 mm
CHAINGUARD:
Custom Bash Guard
PAINT PROTECTION:
ToughShield film on top and downtube, self-healing
KICKSTAND:
Atlas Kickstand XL Cargo ready
FRONT LIGHT:
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT:
LED w/ G-Sensed Brake Light
FENDERS:
Aluminum, heavy duty construction, oversize stays, 27.5"
RACK(S):
Atlas X, 100 kg (220 lb) capacity
